XHL

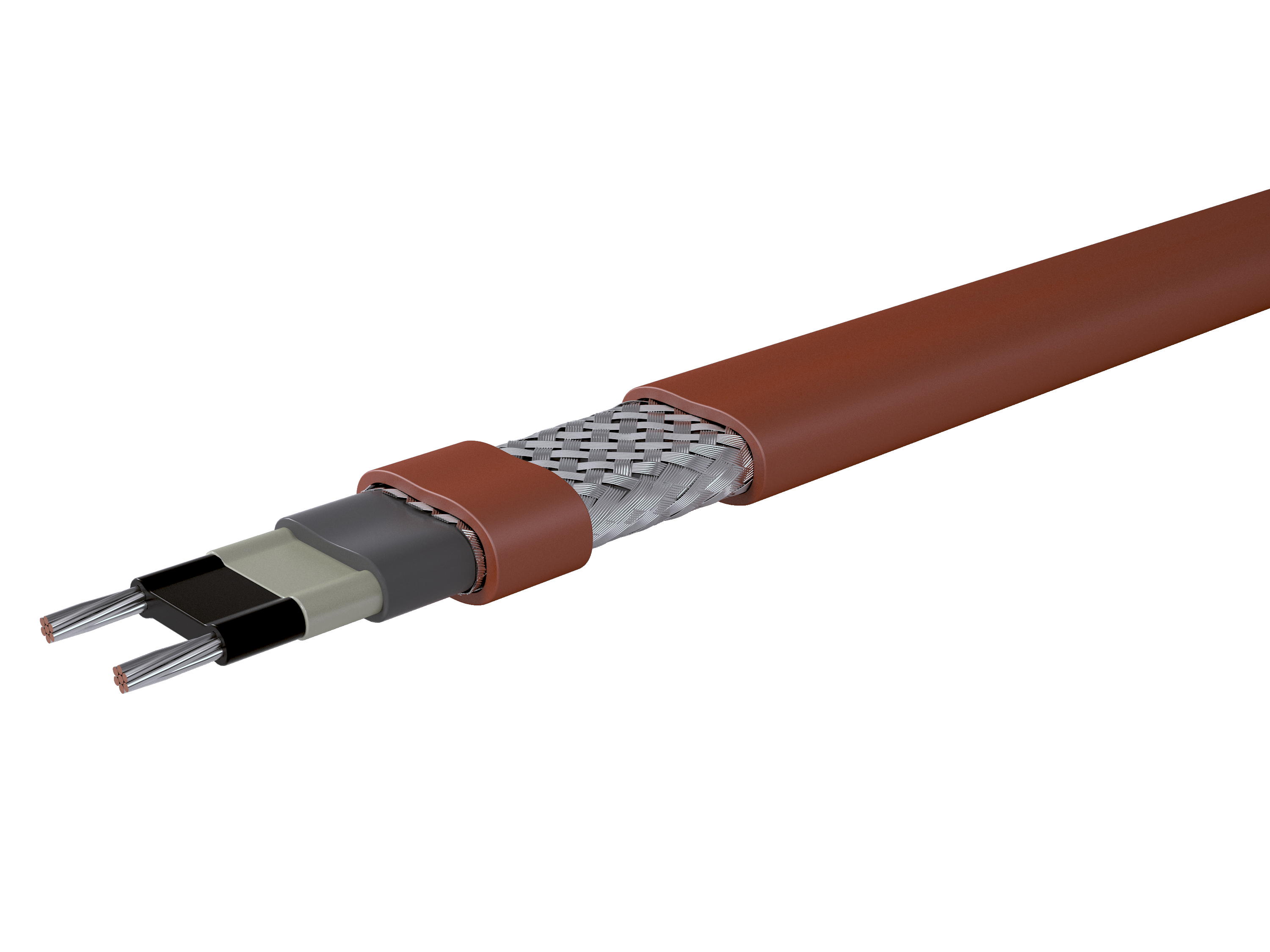

Xarex Heat Trace Light (up to 135℃ / 275℉)
- Bus wires [Nickel-plated Copper]
- Conductive Core[Heating Matrix]
- Inner Jacket[Fluoropolymer]
- Metallic Braid[Tinned Copper]
- Outer Jacket[CT; Fluoropolymer]
XHL self-regulating heating cable can be used for freeze protection and temperature maintenance up to 135°C. It is suitable for use in the medium temperature range of industrial applications such as pipe freeze protection, vessel heating and process temperature maintenance for pipe or tank up to 135°C.
The XHL cable is approved for use in nonhazardous and hazardous (classified) areas. The CT type outer jacket of this heating cable has high chemical resistance and therefore can be used in the area where organic chemicals or corrosives may be present.
Specification
| Max. Intermittent Exposure Temp. (Heating device energized or de-energized) |
135℃ |
|---|---|
| Max. Maintain or Continuous Exposure Temp. | 110℃ |
| Supply Voltage | 208~277 Vac |
| Output Wattage | 20, 30, 45 ,60W/m(@10℃ on pipe) |
| Bus Wire Gauge | 20 to 45W/m 16AWG 60W/m 14AWG |
| Min. Bending Radius | 40mm(@-40℃) |
| Min. Installation Temperature | -40℃ |
| Protection | NEMA 4X, Type4X, IP66 |
| Outer Jacket Color | Yellow |
| Braid Coverage | Minimum 80% |
| Braid Electrical Resistance | Maximum 0.012Ω/m |
| Weight | 20 to 45W/m 140±5g/m 60W/m 150±5g/m |
| Dimensions | 12.5±0.2mm X 5.5±0.2mm |

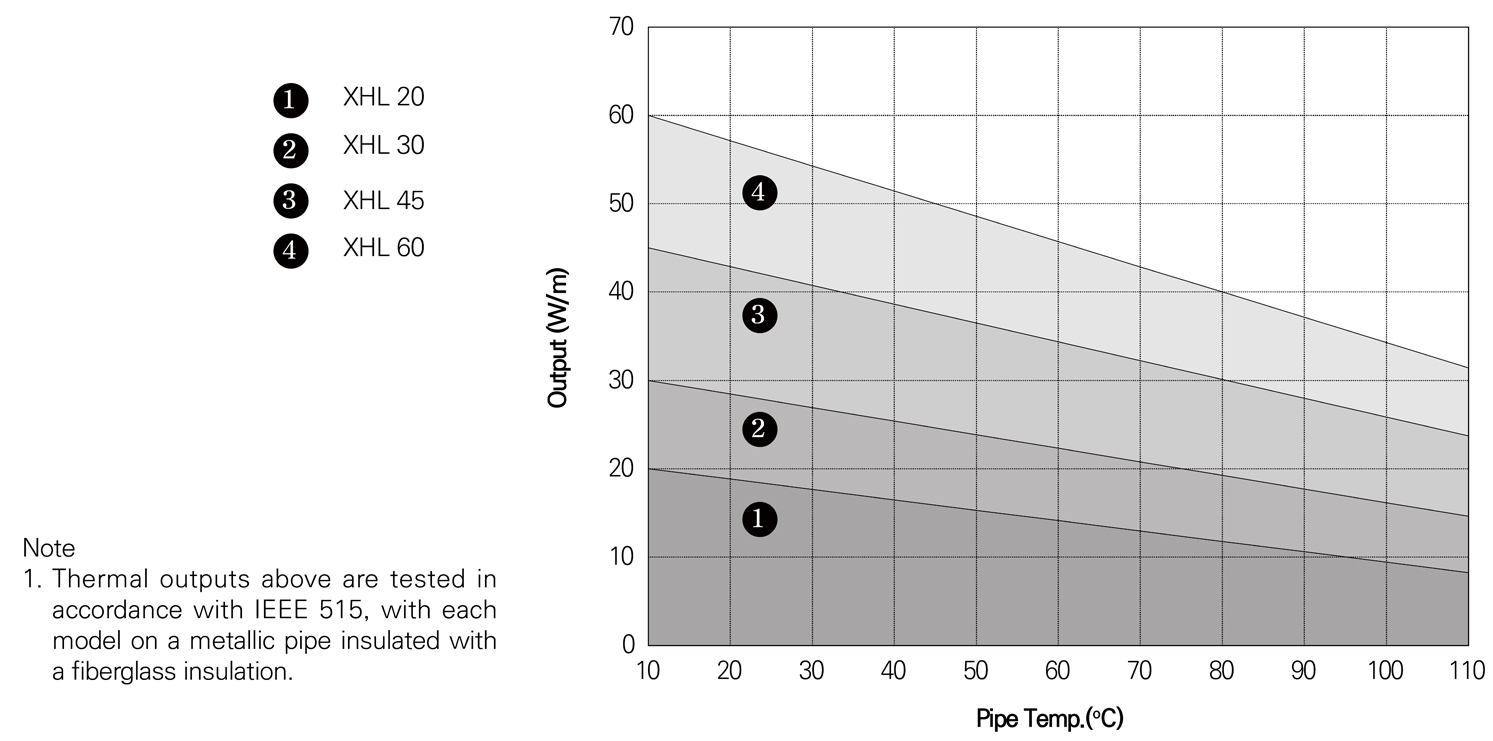

Power output rating

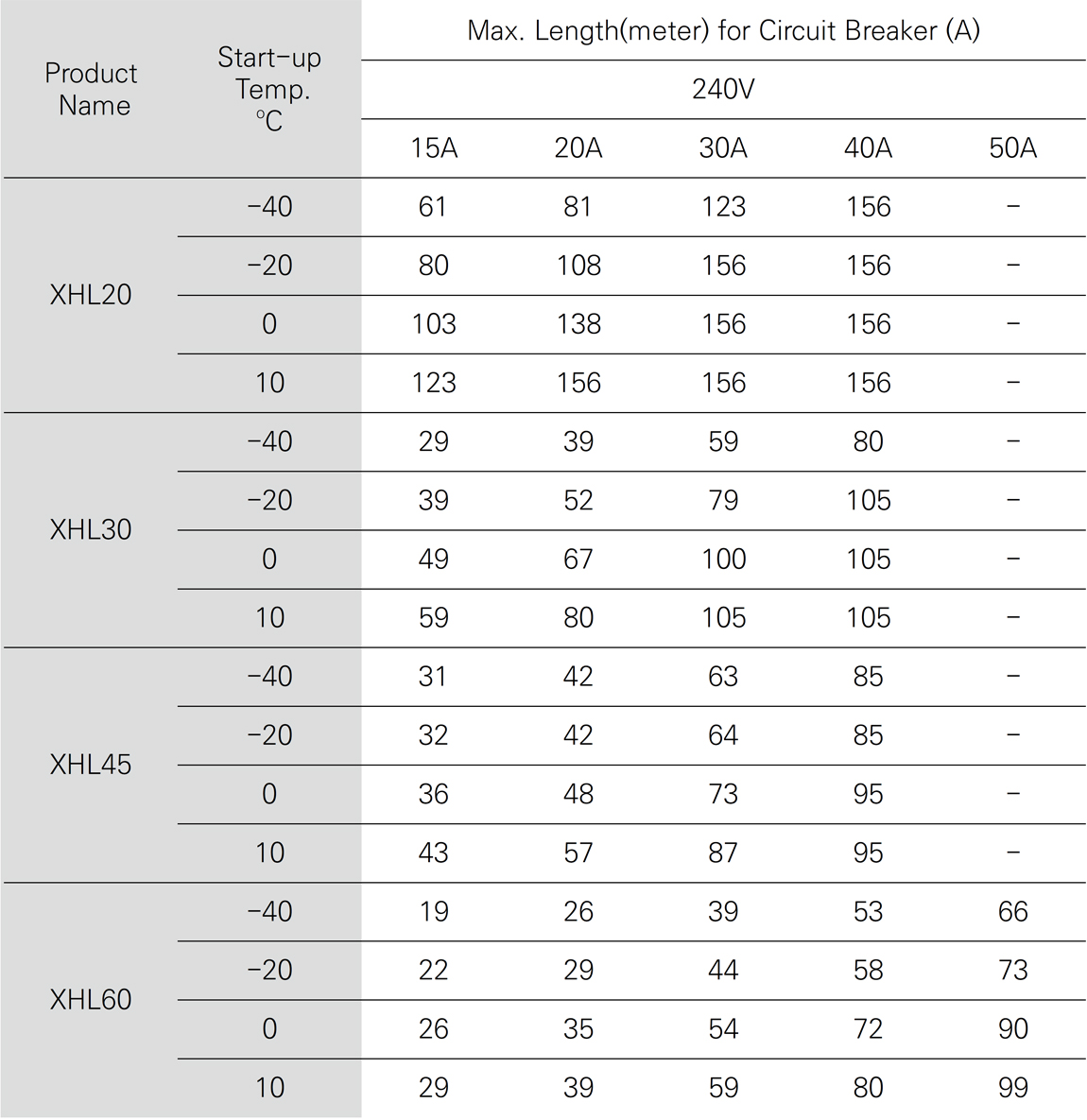

Cable length according to circuit breaker
