FSR
Floor Heating

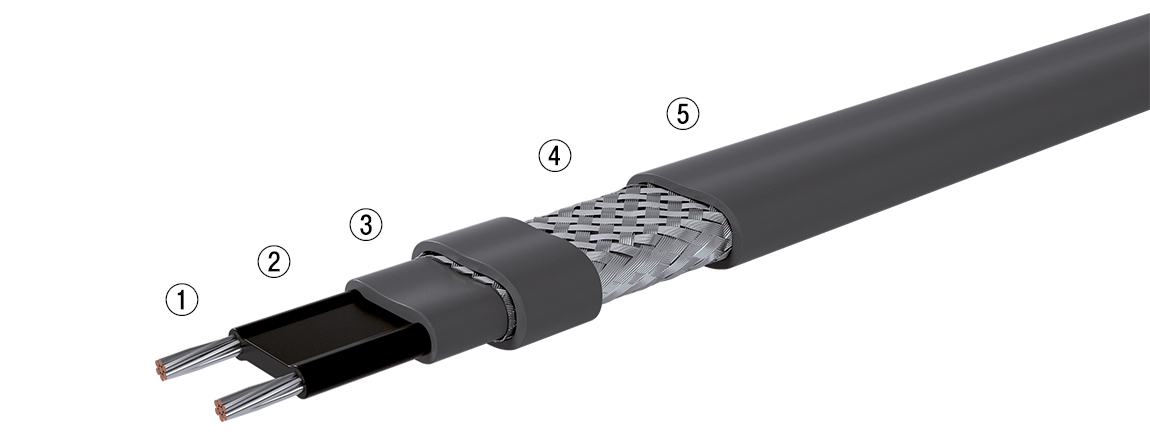

- Bus wires [Nickel-plated Copper/Tinned Copper]
- Conductive Core[Heating Matrix]
- Inner Jacket[Modified Polyolefin]
- Metallic Braid[Tinned Copper]
- Outer Jacket[CR; Modified Polyolefin]
The FSR self-regulating heating cables can be used for preventing frost on any floors of structures such as cold storage warehouses and small parking lots, and also for heating inside dormitory, lounge, auditorium, etc.
FSR is non-magnetic and therefore its screening effect keeps the cables from emitting electromagnetic radiation that is harmful to our bodies.
Through self-regulating property, it can also increase energy efficiency.
Specification
| Max. Intermittent Exposure Temp. (Heating device energized or de-energized) |
100℃(212℉) |
|---|---|
| Max. Maintain or Continuous Exposure Temp. | 85℃(185℉) |
| Supply Voltage | 208~277 Vac |
| Output Wattage | 40W/m(@0℃ Embedded in Mortar) |
| Bus Wire Gauge | 16AWG |
| Min. Bending Radius | 40mm(@-40℃) 1.57in.(@-40℉) |
| Min. Installation Temperature | -40℃ -40℉ |
| Protection | NEMA 4X, Type4X, IP66 |
| Outer Jacket Color | Gray |
| Braid Coverage | Minimum 80% |
| Braid Electrical Resistance | Maximum 0.012Ω/m |
