RPH
住宅用伴热线

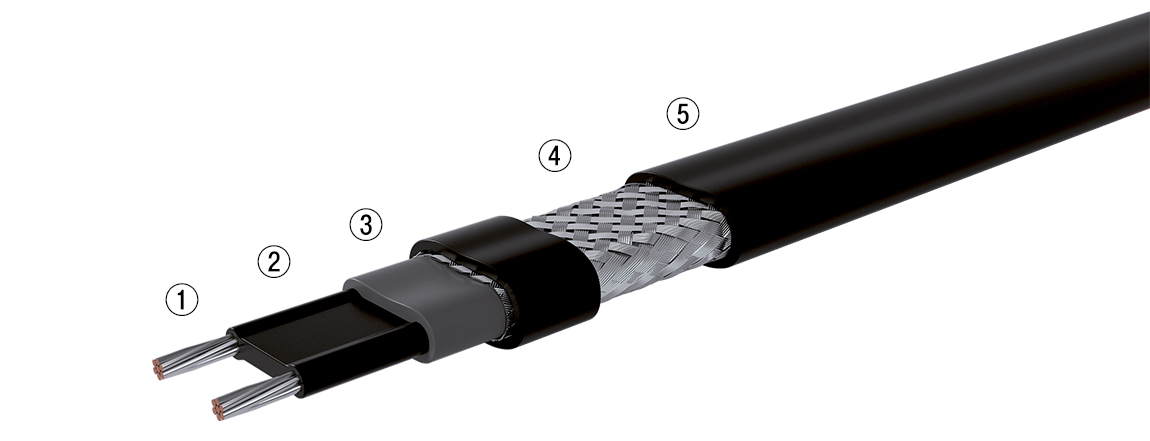

- Bus wires [Nickel-plated Copper/Tinned Copper]
- Conductive Core[Heating Matrix]
- Inner Jacket[Modified Polyolefin]
- Metallic Braid[Tinned Copper]
- Outer Jacket[CR; Modified Polyolefin]
RPH住宅用伴热线专为商业/住宅金属和塑料管道加热应用而设计（不适用于任何管道内部，或者水以外的其他液体，且不可用于危险区域）。预装配产品供商用和住宅使用。
Specification
| Max. Intermittent Exposure Temp. (Heating device energized or de-energized) |
85℃(185℉) |
|---|---|
| Max. Maintain or Continuous Exposure Temp. | 65℃(149℉) |
| Supply Voltage | 120 VAC / 208~277 Vac |
| Output Wattage | 10, 16W/m(@0℃ on pipe) 3, 5W/m(@50℉ on pipe) |
| Bus Wire Gauge | 16AWG |
| Min. Bending Radius | 40mm(@-40℃) 1.57in.(@-40℉) |
| Min. Installation Temperature | -40℃ -40℉ |
| Protection | NEMA 4X, Type4X, IP66 |
| Outer Jacket Color | Black |
| Braid Coverage | Minimum 80% |
| Braid Electrical Resistance | Maximum 0.012Ω/m |
