XHU
Xarex Heat Trace Ultra (up to 200℃ / 392℉)

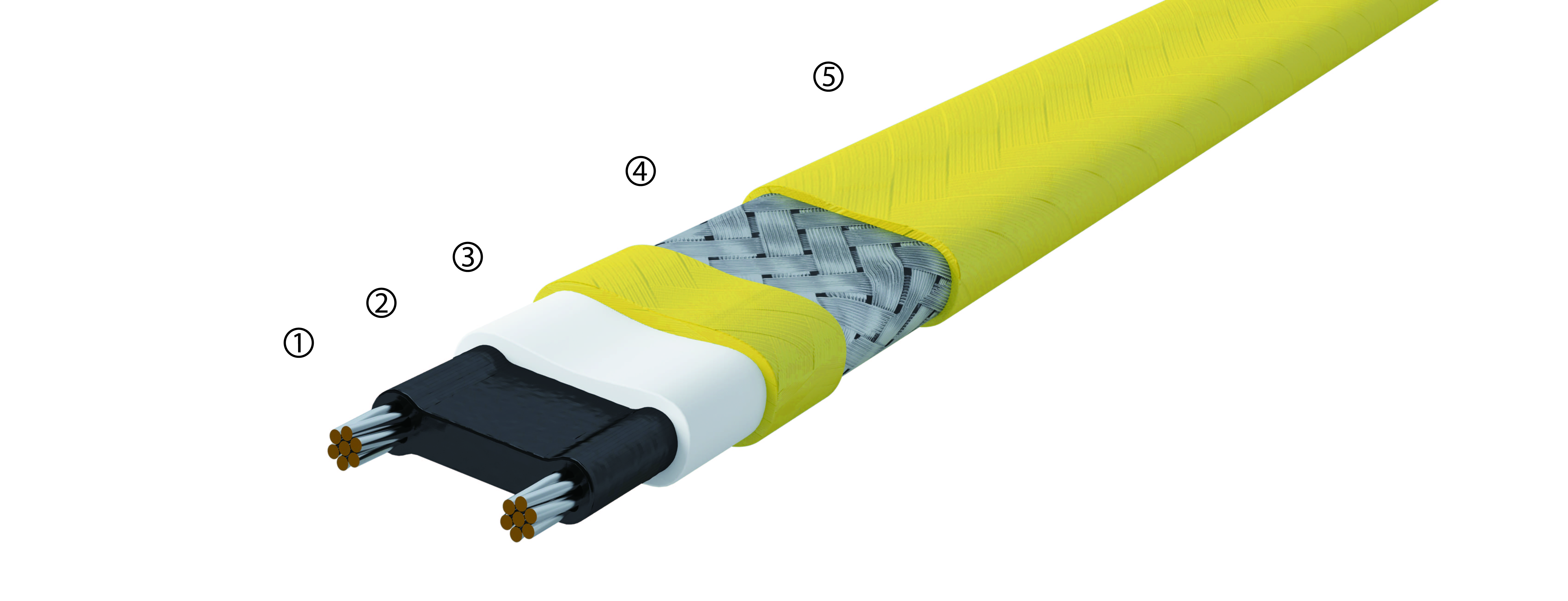

- Bus wires [Nickel-plated Copper]
- Conductive Core[Heating Matrix]
- Inner Jacket[Fluoropolymer]
- Metallic Braid[Tinned Copper]
- Outer Jacket[CT; Fluoropolymer]
The Xarex XHU Self-Regulating Heating Cable is designed for freeze protection and process temperature maintenance of metal and non-metal pipes and vessels and equipment.
XHU heating cable system is certified for ordinary and hazardous areas with maximum maintain temperature of 250°F (120°C) and intermittent exposure temperature of 392°F (200°C). Use of Xarex connection kits for XHU installation is required to comply with system approval, ensuring safe operation and reliable thermal performance.
Specification
| Max. Intermittent Exposure Temp. (Heating device energized or de-energized) |
392°F(200°C) |
|---|---|
| Max. Maintain or Continuous Exposure Temp. | 250°F(120°C) |
| Supply Voltage | 100~120Vac, 200~277 Vac |
| Output Wattage | 5, 10, 15, 20W/ft(16, 33, 49 ,66W/m @10℃ on pipe) |
| Bus Wire Gauge | 16AWG |
| Min. Bending Radius | 1.2” @70°F(30mm @20℃), 2.0” @-40°F(50mm @-40℃) |
| Min. Installation Temperature | -60℃ |
| Protection | NEMA 4X, Type4X, IP66 |
| Outer Jacket Color | Yellow |
| Braid Coverage | Minimum 80% |
| Braid Electrical Resistance | Maximum 0.012Ω/m |
| Weight | 112g/m(±10%) |
| Dimensions | 11mm X 5mm(±10% tolerance) |

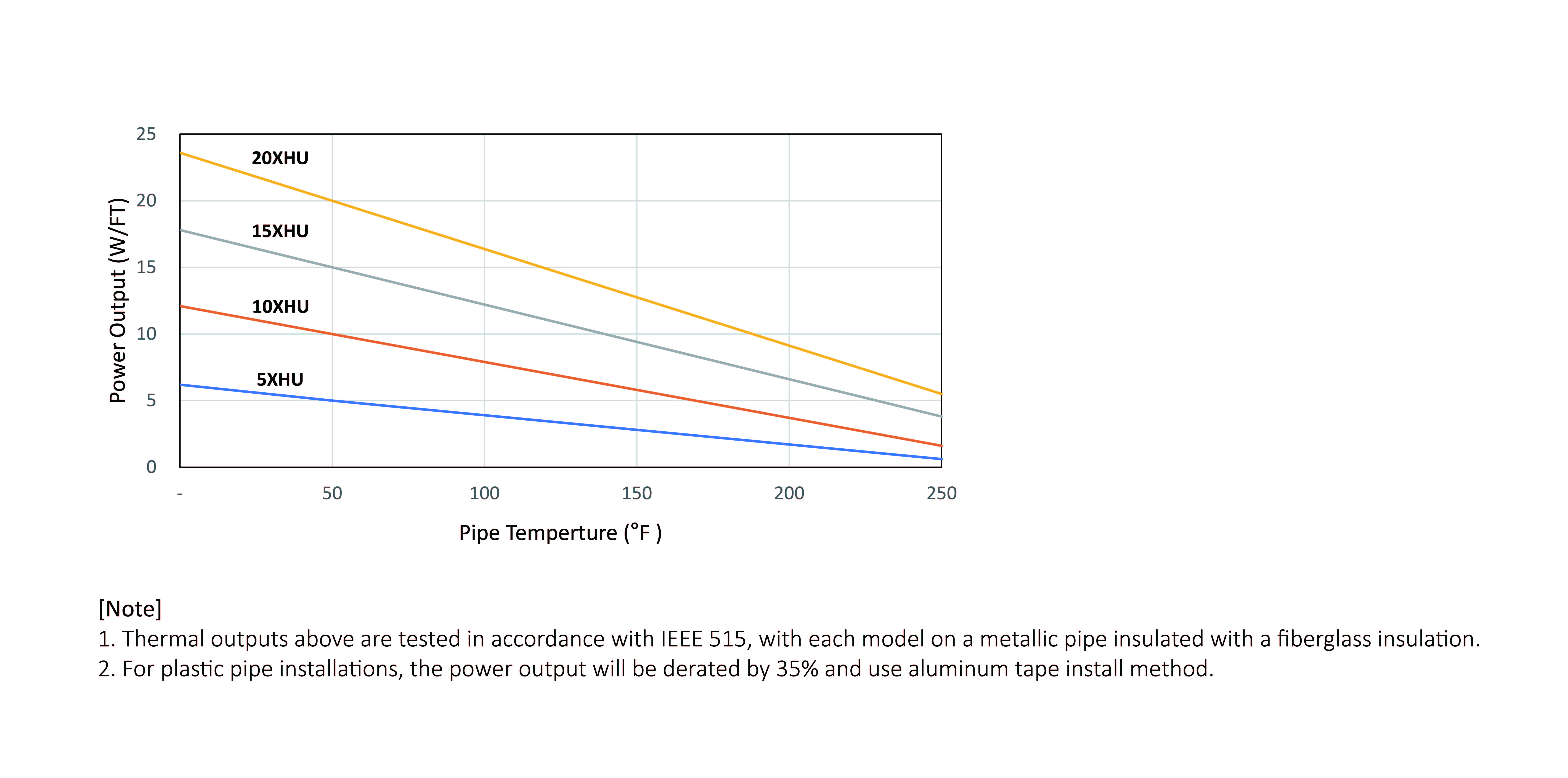

Power output rating

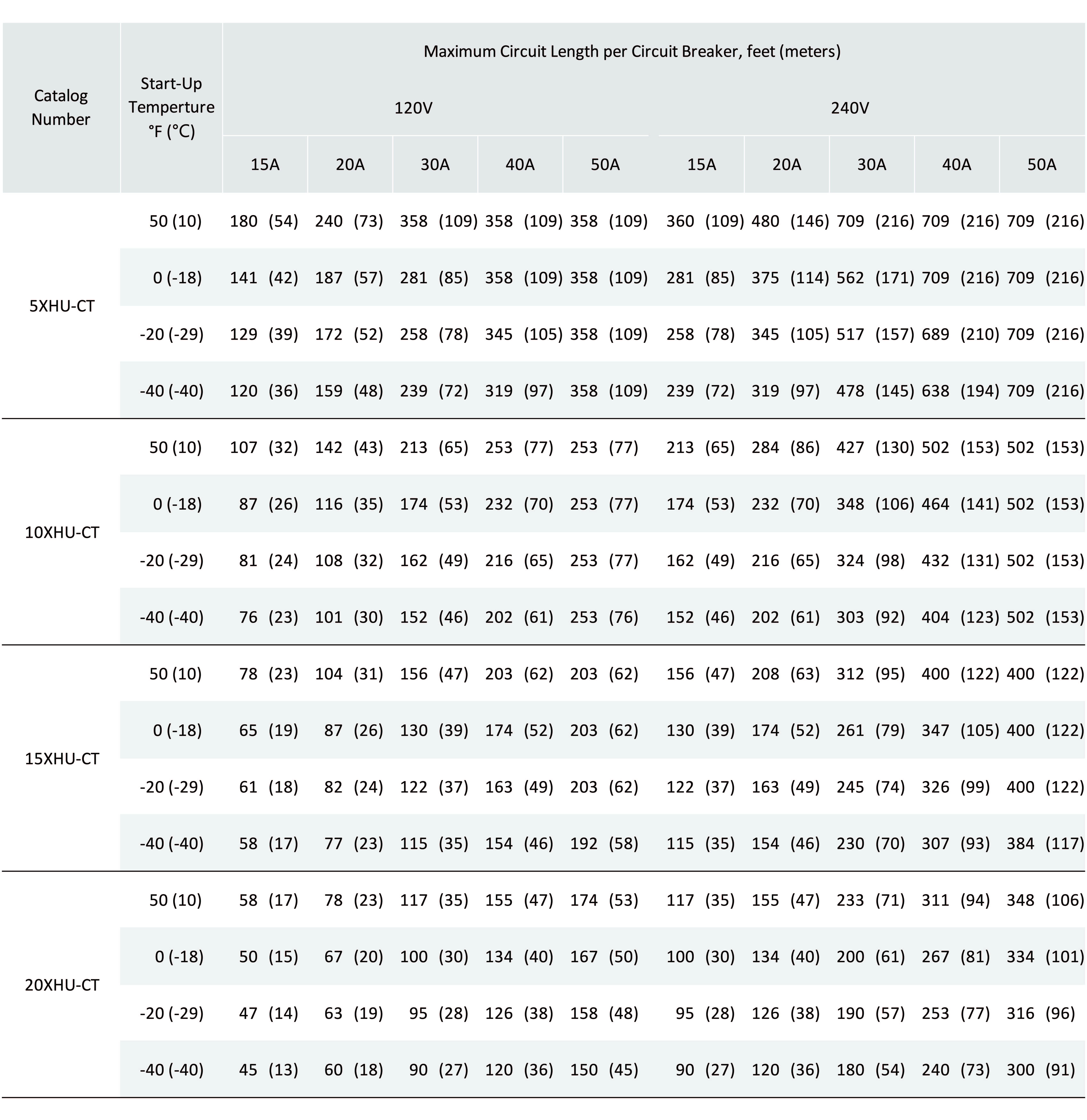

Cable length according to circuit breaker
